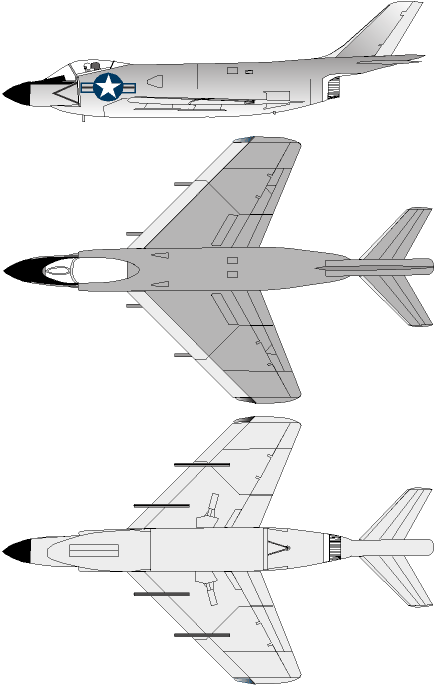

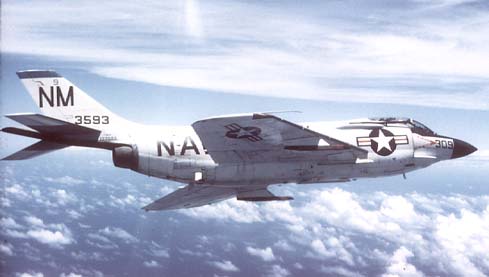

F3H-2 SPECIFICATIONS
ENGINE
|
|
|
| Model |
J71-A-28 |
|
| Manufacturer |
Allison |
|
| Type |
Axial Flow Turbojet |
|
| Military Thrust |
9,500 lbs. |
|
| Maximum Thrust |
14,400 lbs. |
|
|
|
|
|
|
|
| AIRCRAFT |
|
|
| Weight |
Basic |
22,293 lbs. |
|
Max T.O. |
39,000 lbs. |
|
Max Carrier Landing |
26,700 lbs. |
|
|
|
| Dimensions |
Length |
58' 11" |
|
Height |
14' 6" |
|
Wingspan |
35' 4" |
|
|
|
| Performance |
Range |
1180 mi. |
|
Maximum Speed SL |
636 kts. |
|
MACH @ 45,000' |
.958 |
|
Rate of Climb |
19,180 FPM |
|
Combat Ceiling |
49,650 ft. |
|
|
|
AVIONICS
|
|
|
| Radar |
AN/APG-51B |
|
|
|
|
WEAPONS
|
|
|
| Guns |
4 20 mm cannon |
|
|
|
|
| Missiles |
4 Sparrow III Missiles |
|
|
4 Sidewinder Missiles |
|
|
